PTFE-Coated conveyor belts

A smart material for an optimal conveying

Conveyor belts made of PTFE coated glass fabrics are suitable for packaging and food industries, for drying plants and many more applications. PTFE coated glass fabric is dimensionally stable from -150°C to +260°C and withstands temperature peaks up to 300°C. The anti-adhesive surface of the tear-resistant PTFE conveyor belts prevent an adhesion of the conveyed goods of almost any material.

Böhme provides PTFE conveyor belts made of glass fabrics with an anti-stick coating in different thicknesses as endless connection, with different kinds of edge reinforcements as well as belt guidances. Our skilled and experienced employees will plan, develop and produce individual solutions, customised to your production machines and processes.

At a glance

Our PTFE conveyor belts are:

  • easy to clean due to the anti-adhesive surface
  • thermally resistant from -150°C to 260°C
  • resistant to chemicals, HF, UV and IR exposure
  • tear-resistant and dimensionally stable
  • non-toxic and food-compatible
  • approved for sensitive applications with FDA, USDA and LFGB certificates
  • certified according to DIN EN ISO 9001:2015
Application examples
  • shrink tunnels
  • lamination presses
  • vacuum laminators
  • pass-through drying systems
  • vulcanization systems
  • food systems
  • packaging systems
  • and many others
Versions
  • endless belt joints
  • mechanical joints
  • design according to customer’s specification
  • available thicknesses from 0.08 mm to 0.7 mm
  • adaptation to production systems and processes
Edge reinforcements
  • with PTFE film
  • with PTFE coated Kevlar® fabrics
  • with PTFE coated glass fabrics
  • single and double sided, on the upper and bottom surface
Advantages
  • extension of durability
  • prevention of lateral damage
  • stabilization, belt guidance
  • improvement of the running characteristics
  • power transmission drive

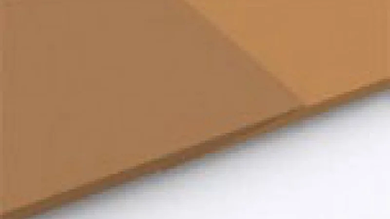

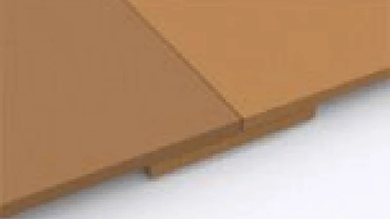

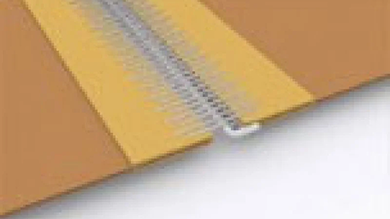

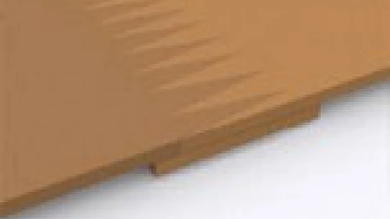

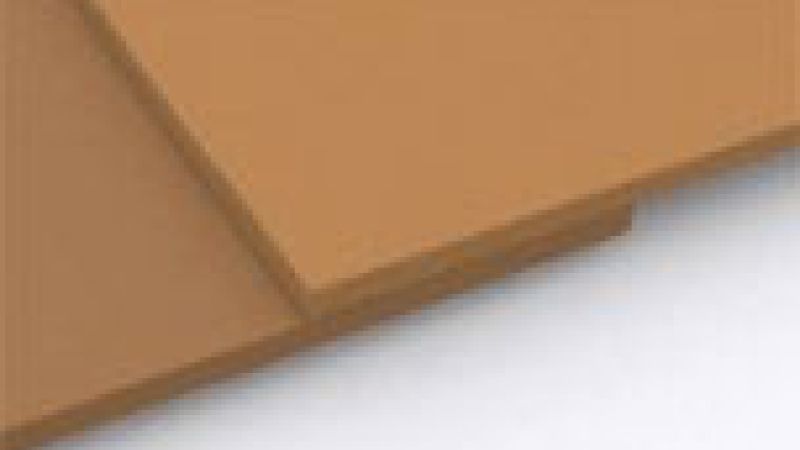

Examples of belt joints

  • Duplex

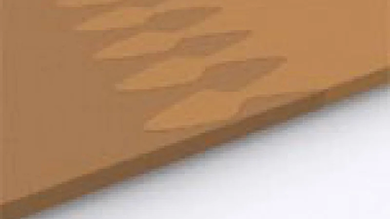

  • Finger

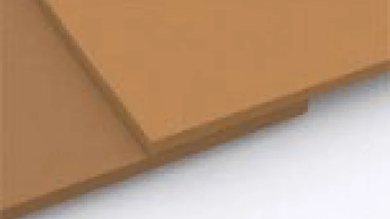

  • Overlapping

  • Butt weld

  • Overlapping

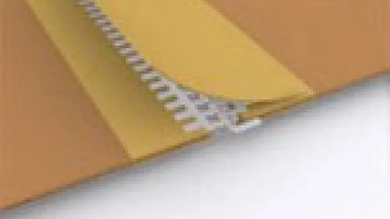

  • Aligator

  • Aligator with cover

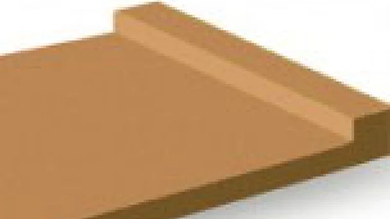

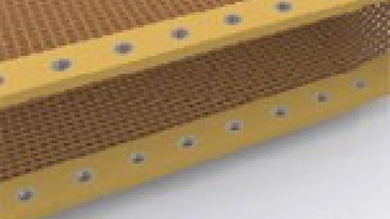

    Examples of belt guidances

    • Dots

    • Rivets, conical

    • Eyelets

    • Tracking cord

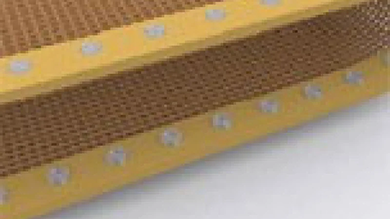

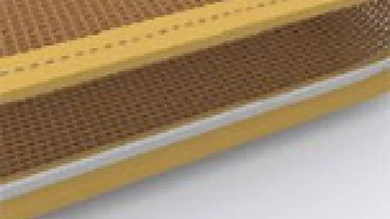

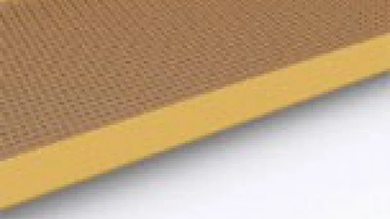

      Examples of edge reinforcements

      • PTFE coated glass fabric film

      • one-sided

      • Kevlar®

      • PTFE-Film

        Contact us!

        Do you have any questions about our products, individual designs, our quality assurance or would you like advice?
