PTFE-Coated fabrics

MATERIAL WITH OUTSTANDING CHARACTERISTICS

At Böhme-Kunststofftechnik we offer PTFE coated glass fabrics in different versions for standard and as well very demanding applications. The combination of PTFE and glass fabric results in a material with particular properties. The material is temperature resistant (between -150 °C and +260 °C), chemical resistant and has an excellent anti-adhesive surface with a low friction coefficient. Furthermore PTFE coated glass fabrics show a high dielectric strength and dimensional stability. They are stable to UV, IR and HF radiation and reliably defy wetness and other environmental effects. Because of these characteristics PTFE is also increasingly used in architecture.

PTFE-Coated glass fabrics for different applications
  • architecture
  • chemical industry
  • food industry
  • mechanical engeneering
  • packaging industries.
  • and many more
Application examples
  • coating for bearings and seals
  • linings in chemical plants
  • reusable baking sheets
  • cover sheet of welding bars during the welding of PE packing films
  • and many more
Cleaning

In order to increase the service life of your PTFE glass fabric, we recommend you to use our Boehme Raclette® for cleaning.

Product information Böhme-Raclette®

Our quality assurance for your products

Customers’ requests are our priority since the beginning. For this reason our efforts are focused on your satisfaction with our products and service. We develop and produce our PTFE glass fabric films exclusively out of high-grade materials with great expertise and modern technology. Thereby it is our aspiration to constantly increase our skills and to develop our products. We are happy to take your requests and suggestions into consideration.

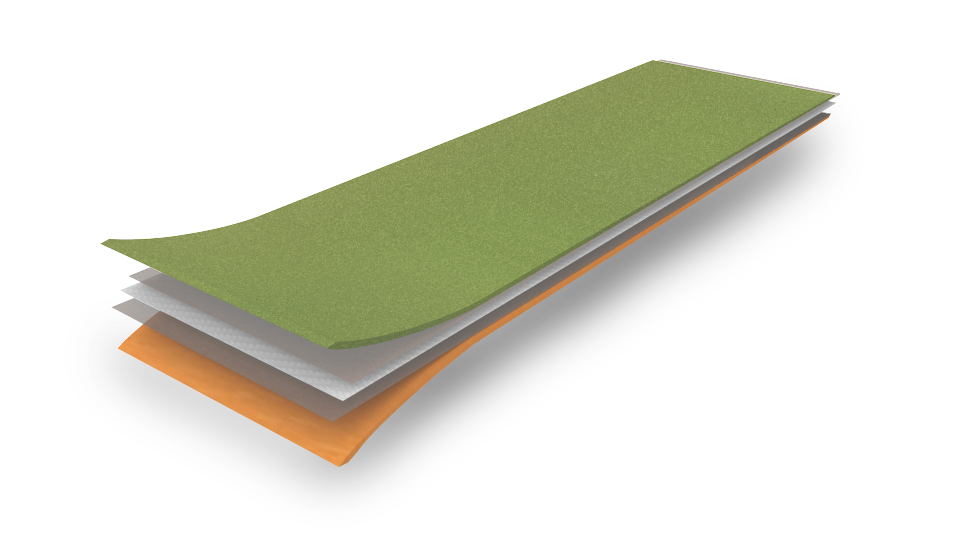

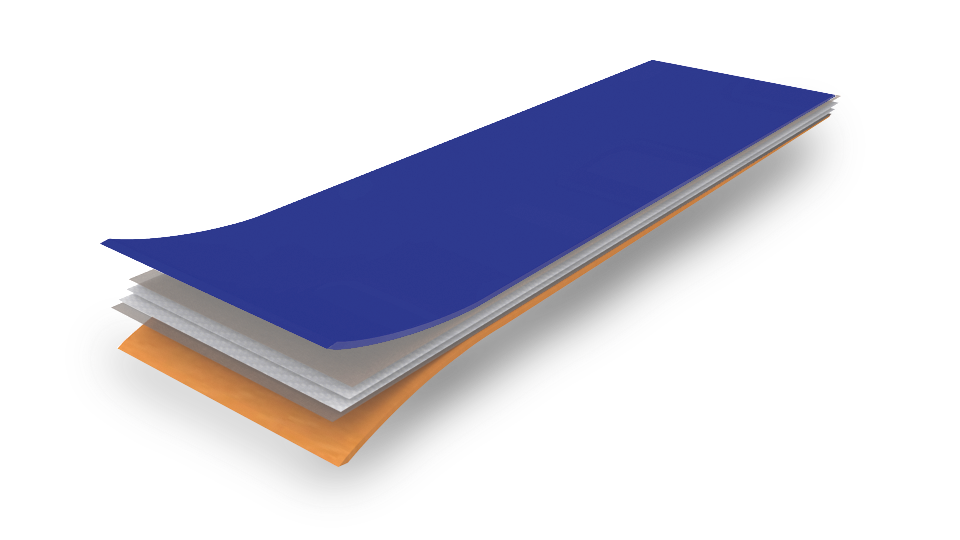

Following you can find our range of standard and premium as well as our Böhme-Expert 2.0® and Böhme-Superior 3.0® qualities.

  • Non-adhesive

    TYPE 2201
    thickness: 0,076 mm | PTFE: 53% | weight: 125 g/m² | standard-width: 1000 mm

    TYPE 2333
    thickness: 0,13 mm | PTFE: 54% | weight: 235 g/m² | standard-width: 1000/1500 mm

    TYPE 2370
    thickness: 0,14 mm | PTFE: 61% | weight: 270 g/m² | standard-width: 1000 mm

    TYPE 2623
    thickness: 0,23 mm | PTFE: 55% | weight: 455 g/m² | standard-width: 1000/1500 mm

    Self-adhesive

    TYPE 3241
    thickness: 0,08 mm | PTFE: 53% | weight: 125 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3390
    thickness: 0,12 mm | PTFE: 54% | weight: 235 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3449
    thickness: 0,14 mm | PTFE: 61% | weight: 270 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3723
    thickness: 0,23 mm | PTFE: 55% | weight: 455 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3291
    thickness: 0,13 mm | PTFE: 52% | weight: 250 g/m² | standard-width: 1000 mm | acryl adhesive with liner

  • Non-adhesive

    TYPE 2200
    thickness: 0,08 mm | PTFE: 68% | weight: 155 g/m² | standard-width: 1000 mm

    TYPE 2335
    thickness: 0,14 mm | PTFE: 60% | weight: 270 g/m² | standard-width: 1000 mm

    TYPE 2377
    thickness: 0,15 mm | PTFE: 65% | weight: 310 g/m² | standard-width: 1000 mm

    TYPE 2625
    thickness: 0,25 mm | PTFE: 62% | weight: 550 g/m² | standard-width: 1000/2000/2600 mm

    TYPE 2875
    thickness: 0,34 mm | PTFE: 59% | weight: 720 g/m² | standard-width: 1000/1500/2000 mm

    Self-adhesive

    TYPE 3391
    thickness: 0,13 mm | PTFE: 65% | weight: 310 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3450
    thickness: 0,15 mm | PTFE: 65% | weight: 310 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3750
    thickness: 0,25 mm | PTFE: 62% | weight: 550 g/m² | standard-width: 1000 mm | silicone adhesive with liner

    TYPE 3855
    thickness: 0,33 mm | PTFE: 62% | weight: 550 g/m² | standard-width: 1000 mm | silicone adhesive with liner

  • Non-adhesive | usable on both sides

    Laminat + PTFE Laminat
    thickness: 0,17 mm | PTFE: >65 % | Additional surface treatment | Excellent durability

  • Non-adhesive | usable on both sides

    Filmlaminat
    thickness: 0,16 mm | PTFE: >65 % | Special PTFE-coating plus PTFE-laminate | Extreme high durability due to anti-adhesive surface

Contact us!

Do you have any questions about our products, individual designs, our quality assurance or would you like advice?
